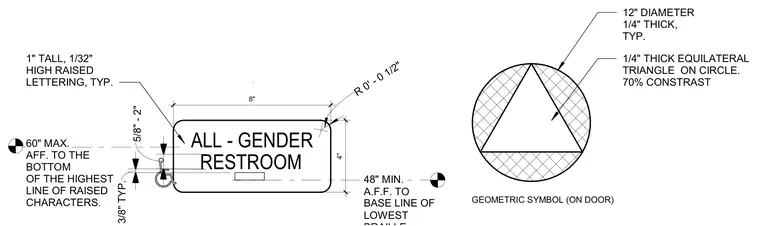

An all-gender restroom sign features 1-inch tall raised lettering with a 1/32-inch rise, paired with Braille characters positioned between 48 inches minimum and 60 inches maximum above the finished floor to the bottom of the highest line of raised characters. The sign plate measures 8 inches wide by 4 inches high with rounded corners of 0.5-inch radius. A separate geometric door symbol consists of a 12-inch diameter circle with a quarter-inch thick equilateral triangle maintaining 70% contrast.
1" TALL, 1/32" HIGH RAISED LETTERING, TYP. RESTROOM 3/8" TYP. 5/8" - 2" 8" 4" ALL - GENDER 48" MIN. A.F.F. TO BASE LINE OF LOWEST 1/4" THICK EQUILATERAL TRIANGLE ON CIRCLE. 70% CONSTRAST 12" DIAMETER 1/4" THICK, TYP. GEOMETRIC SYMBOL (ON DOOR) 60" MAX. AFF. TO THE BOTTOM OF THE HIGHEST LINE OF RAISED CHARACTERS. R 0' - 0 1/2"
