Continuous batt insulation is installed above the deck with an FSK-25 vapor barrier face oriented toward the warm side, supplemented by an air barrier between framing and insulation when required by the authority having jurisdiction. Ceiling joist framing sits above a scheduled gypsum ceiling that terminates against the exterior wall assembly. Furring runs vertically along the exterior wall as scheduled on plans.

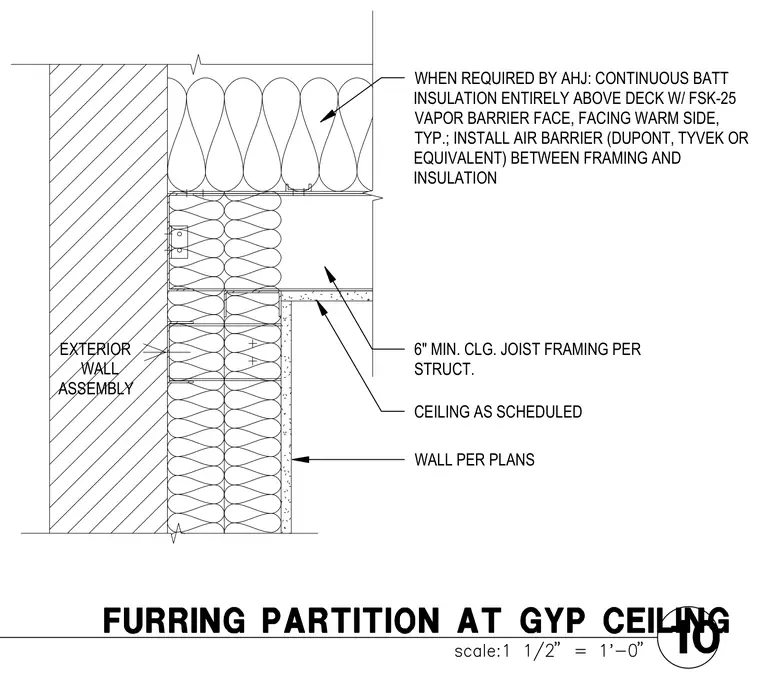

WHEN REQUIRED BY AHJ: CONTINUOUS BATT INSULATION ENTIRELY ABOVE DECK W/ FSK-25 VAPOR BARRIER FACE, FACING WARM SIDE, TYP.; INSTALL AIR BARRIER (DUPONT, TYVEK OR EQUIVALENT) BETWEEN FRAMING AND INSULATION 6" MIN. CLG. JOIST FRAMING PER STRUCT. CEILING AS SCHEDULED WALL PER PLANS EXTERIOR WALL ASSEMBLY
