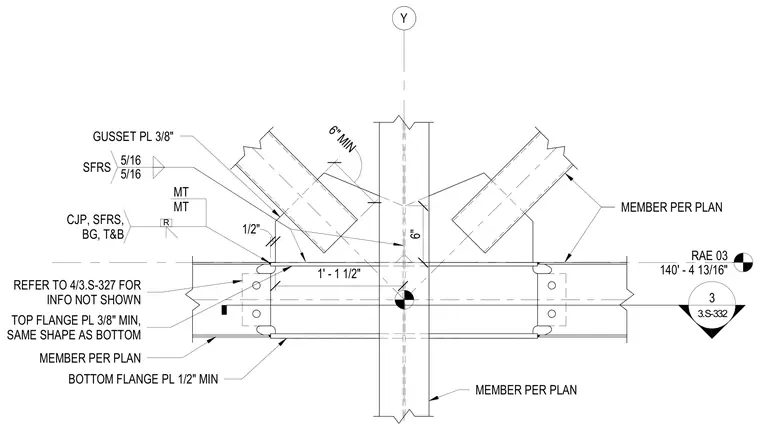

A heavy steel connection at column line Y features diagonal and continuous framing members sized per plan. A three-eighths-inch gusset plate connects the diagonal members using five-sixteenths-inch fillet welds. The assembly incorporates a one-half-inch minimum bottom flange plate and a three-eighths-inch minimum top flange plate shaped to match the bottom. Complete joint penetration welds and magnetic particle testing are specified where indicated by callouts.
RAE 03 140' - 4 13/16" Y MEMBER PER PLAN R CJP, SFRS, BG, T&B MT MT REFER TO 4/3.S-327 FOR INFO NOT SHOWN BOTTOM FLANGE PL 1/2" MIN MEMBER PER PLAN 1' - 1 1/2" 6" MEMBER PER PLAN 6" MIN 1/2" 5/16 5/16 SFRS GUSSET PL 3/8" TOP FLANGE PL 3/8" MIN, SAME SHAPE AS BOTTOM 3 3.S-332
