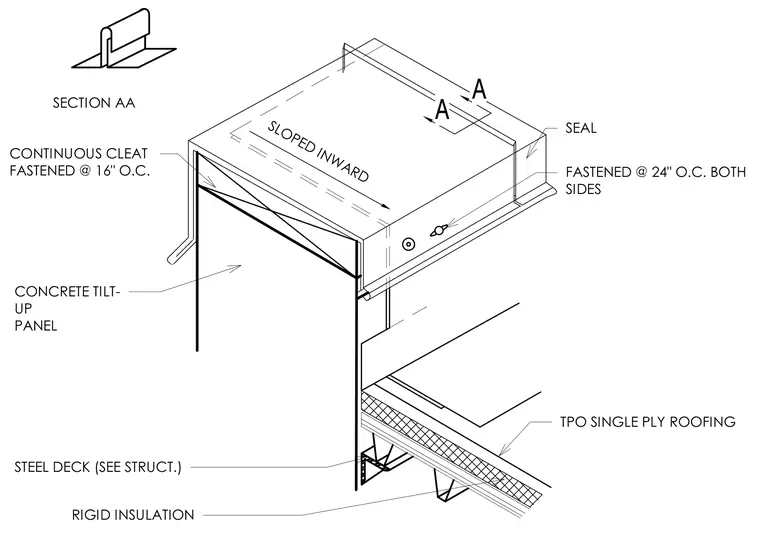

A continuous metal coping cap is secured over a sloped-inward parapet atop a concrete tilt-up wall panel. The metal coping features a continuous cleat fastened at sixteen inches on center and side fasteners spaced at twenty-four inches on center with sealant at joints. Single-ply TPO roofing extends up the parapet and beneath the coping assembly, tying into the roof deck built from steel framing and rigid insulation.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
