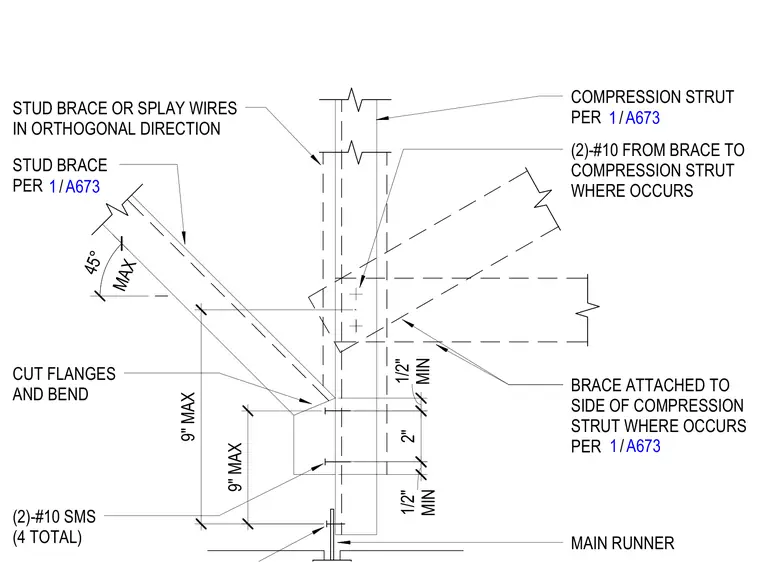

A stud brace connects to the side of the compression strut using two number ten screws where required. The lower end features cut flanges and a bend secured with a total of four number ten sheet metal screws. The main runner connects at the base with specified clearances and maximum dimensions.
9" MAX 2" MAX 45° MIN 1/2" MIN 1/2" MAIN RUNNER BRACE ATTACHED TO SIDE OF COMPRESSION STRUT WHERE OCCURS PER COMPRESSION STRUT PER (2)-#10 FROM BRACE TO COMPRESSION STRUT WHERE OCCURS 9" MAX (2)-#10 SMS (4 TOTAL) CUT FLANGES AND BEND STUD BRACE PER STUD BRACE OR SPLAY WIRES IN ORTHOGONAL DIRECTION / 1 A673 / 1 A673 / 1 A673
