Architectural · A-DQ698

Steel Sectional Door Jamb Guard Detail

Materials

Steel

Elements

Doors Anchors / Embeds Connections / Plates

Connections

Bolted Connection

About this detail

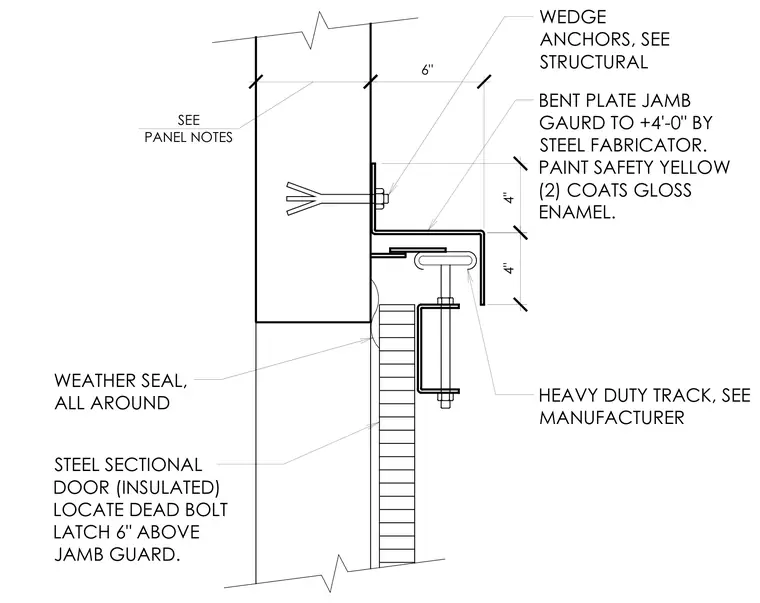

An insulated steel sectional door jamb is detailed with a bent plate jamb guard extending to plus four feet zero inches, finished with two coats of safety yellow gloss enamel. The bent plate guard is secured to the wall with wedge anchors sized per structural drawings. A heavy-duty track, provided per the manufacturer, mounts adjacent to the guard. A continuous weather seal is applied all around the opening, and the dead bolt latch is located six inches above the top of the jamb guard.
