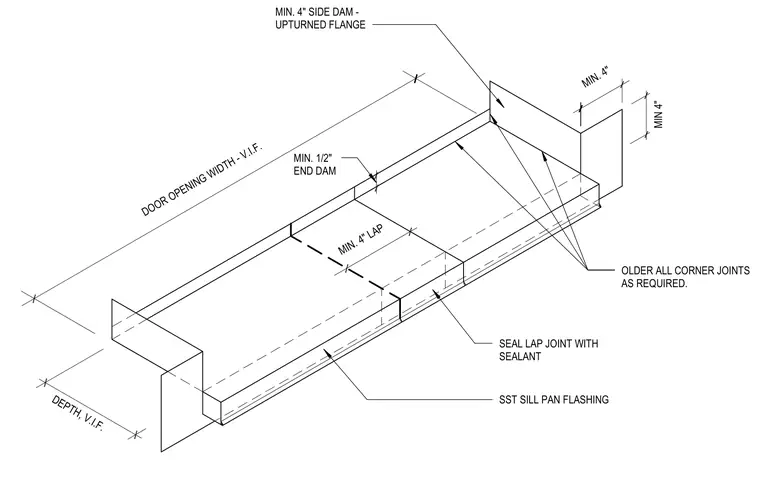

Stainless steel sill pan flashing assembly for door and window openings. The assembly features a minimum four-inch depth and a continuous upturned flange forming a minimum four-inch side dam. End dams measure a minimum of one-half inch in height. Segmented flashing pieces overlap by a minimum of four inches, with lap joints sealed using approved sealant. All corner joints are soldered or otherwise joined as required to maintain a watertight pan.
MIN. 4" DEPTH, V.I.F. DOOR OPENING WIDTH - V.I.F. MIN. 4" LAP SEAL LAP JOINT WITH SEALANT MIN. 4" SIDE DAM - UPTURNED FLANGE MIN. 1/2" END DAM MIN 4" SST SILL PAN FLASHING OLDER ALL CORNER JOINTS AS REQUIRED.
