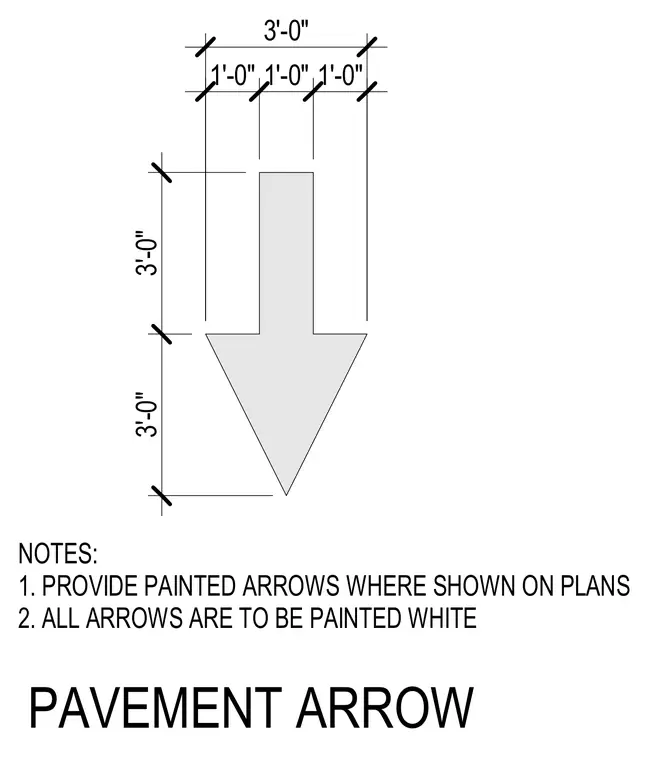

Painted pavement directional arrow detail with overall dimensions of three feet by six feet. White traffic paint is specified for all pavement arrows located per the site and parking plans.
1'-0" 1'-0" 1'-0" 3'-0" 3'-0" 3'-0" NOTES: 1. PROVIDE PAINTED ARROWS WHERE SHOWN ON PLANS 2. ALL ARROWS ARE TO BE PAINTED WHITE PAVEMENT ARROW
