A painted steel plate guardrail post measuring 1/2 inch by 3 inches is spaced at 4 feet on center. A wood handrail with a clear finish mounts to the post. The assembly stands 3 feet 6 inches tall with multiple horizontal members spaced at 4-inch increments. Fillet welds secure the post connection at the base.

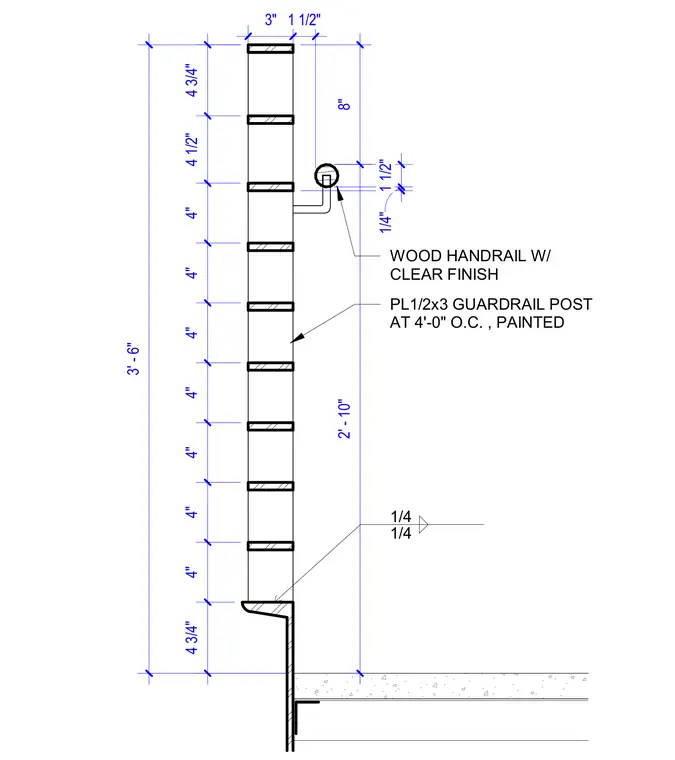

3" 1 1/2" 1 1/2" 1/4" 2' - 10" 8" 4 3/4" 4" 4" 4" 4" 4" 4" 4" 4 1/2" 4 3/4" 3' - 6" 1/4 1/4 PL1/2x3 GUARDRAIL POST AT 4'-0" O.C. , PAINTED WOOD HANDRAIL W/ CLEAR FINISH
