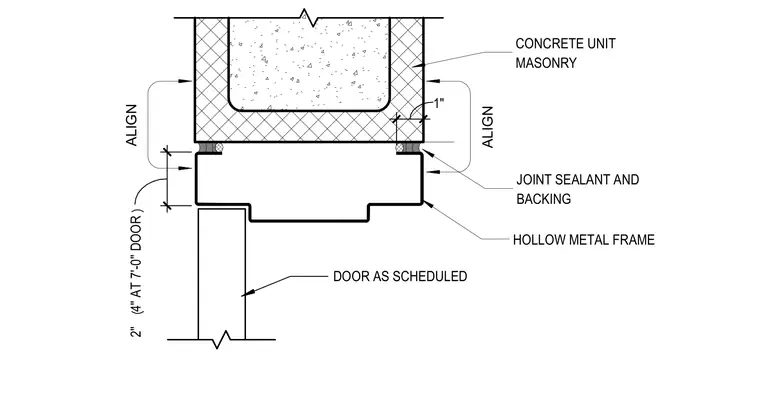

A hollow metal frame connects to a concrete unit masonry wall jamb with aligned faces on both sides. Joint sealant backed by a backer rod fills the perimeter gap between the metal frame and the masonry reveal. A door as scheduled swings within the frame opening.
ALIGN ALIGN CONCRETE UNIT MASONRY JOINT SEALANT AND BACKING 1 " 2 " ( 4 " A T 7 ' - 0 " D O O R ) HOLLOW METAL FRAME DOOR AS SCHEDULED
