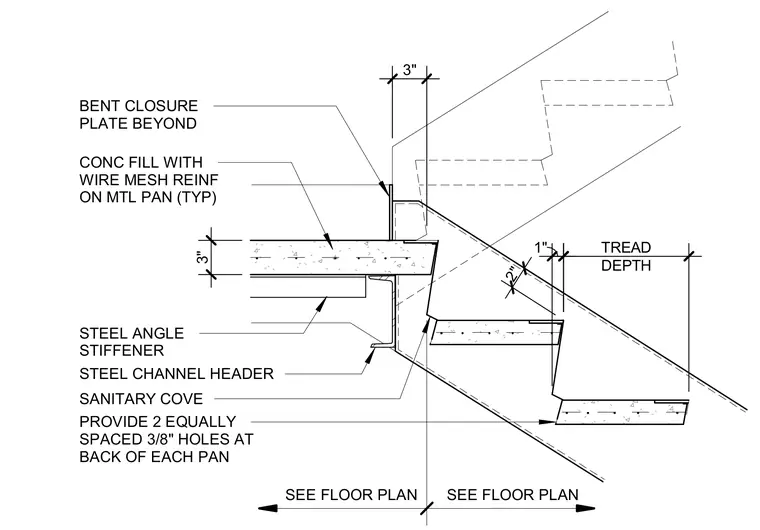

The intermediate stair landing transitions to concrete-filled metal pans supported by a steel channel header with a steel angle stiffener. A bent closure plate is positioned beyond the landing edge. Each metal pan contains two equally spaced three-eighth-inch holes at the back and features a sanitary cove at the tread. The concrete fill is reinforced with wire mesh over the typical metal pan assembly.
3" SEE FLOOR PLAN SEE FLOOR PLAN BENT CLOSURE PLATE BEYOND CONC FILL WITH WIRE MESH REINF ON MTL PAN (TYP) STEEL ANGLE STIFFENER STEEL CHANNEL HEADER 3" 2" DEPTH TREAD 1" SANITARY COVE PROVIDE 2 EQUALLY SPACED 3/8" HOLES AT BACK OF EACH PAN
