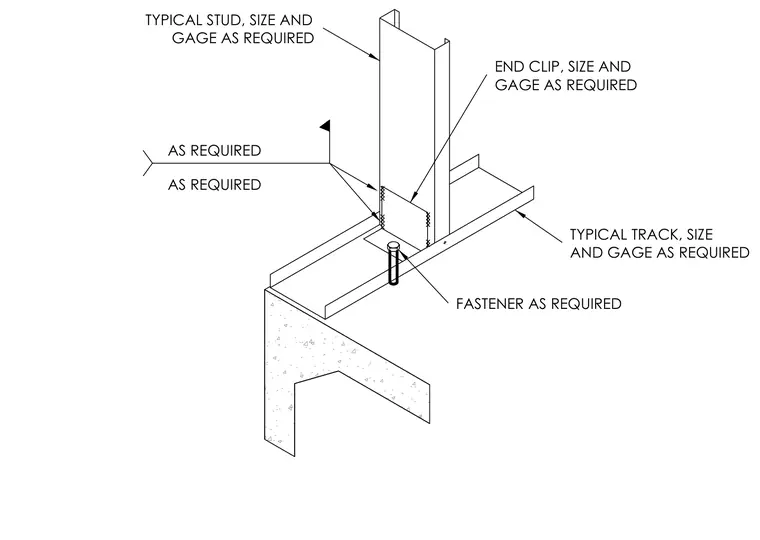

A typical cold-formed metal stud connects to a bottom track with size and gauge as required. An end clip is secured to the stud and track using fasteners as required. The track is anchored to the concrete substrate using a fastener sized per engineering requirements.
AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED FASTENER AS REQUIRED
