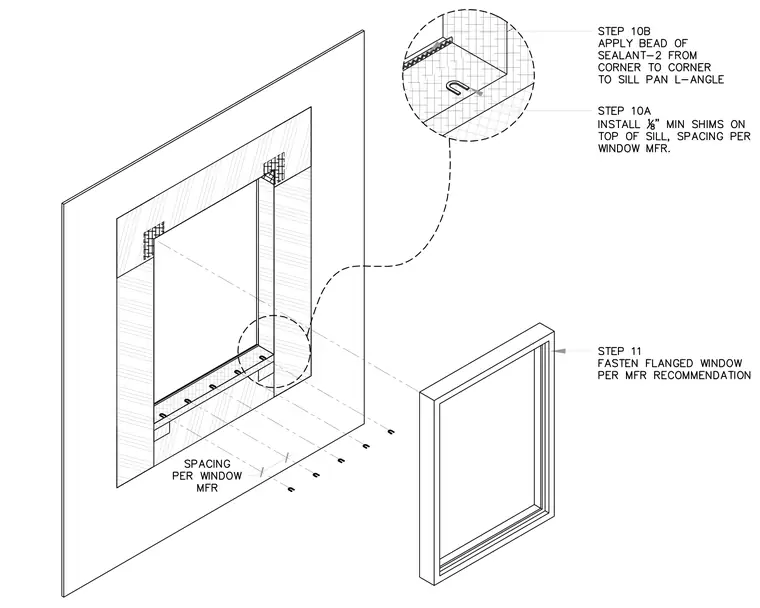

Install one-eighth-inch minimum shims on top of the sill with spacing per the window manufacturer. Apply a bead of sealant from corner to corner to the sill pan angle. Fasten the flanged window per manufacturer recommendation.
