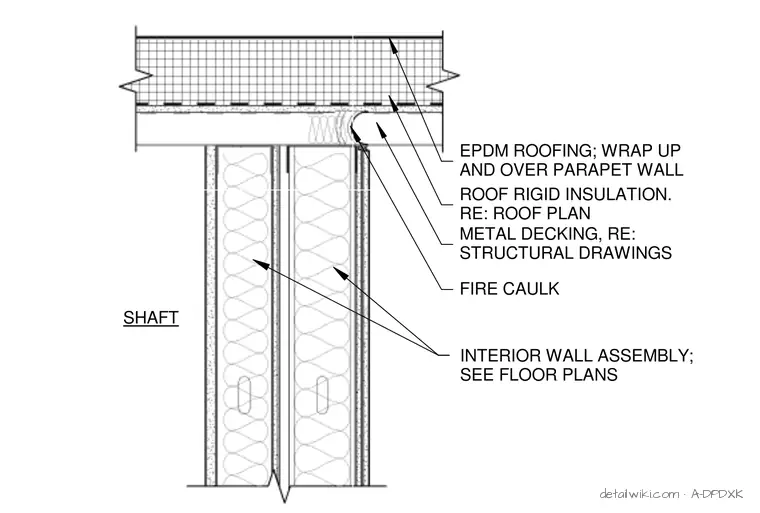

An interior wall assembly of a shaft connects to a metal decking roof structure with rigid insulation and EPDM roofing wrapped up and over the parapet wall. A fire caulk joint seals the gap between the top of the interior wall assembly and the underside of the roof deck.
METAL DECKING, RE: STRUCTURAL DRAWINGS SHAFT ROOF RIGID INSULATION. RE: ROOF PLAN EPDM ROOFING; WRAP UP AND OVER PARAPET WALL INTERIOR WALL ASSEMBLY; SEE FLOOR PLANS FIRE CAULK
