A-DP6KF — Stair at Flr. Typ.

Architectural · A-DP6KF

Stair at Flr. Typ.

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5.03
Discipline: Architectural

Materials

Concrete Metal (misc.)Steel

Elements

Beams Connections / Plates Decks Floors / Slabs Stairs

Connections

Deck Attachment Welded Connection

Text on the drawing

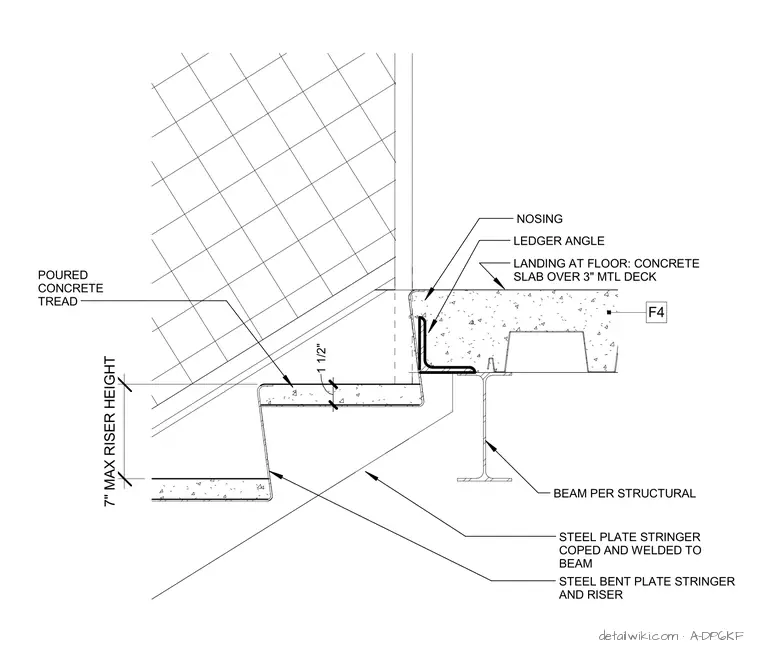

LANDING AT FLOOR: CONCRETE SLAB OVER 3" MTL DECK LEDGER ANGLE BEAM PER STRUCTURAL STEEL PLATE STRINGER COPED AND WELDED TO BEAM NOSING STEEL BENT PLATE STRINGER AND RISER POURED CONCRETE TREAD 7" MAX RISER HEIGHT 1 1/2" F4
