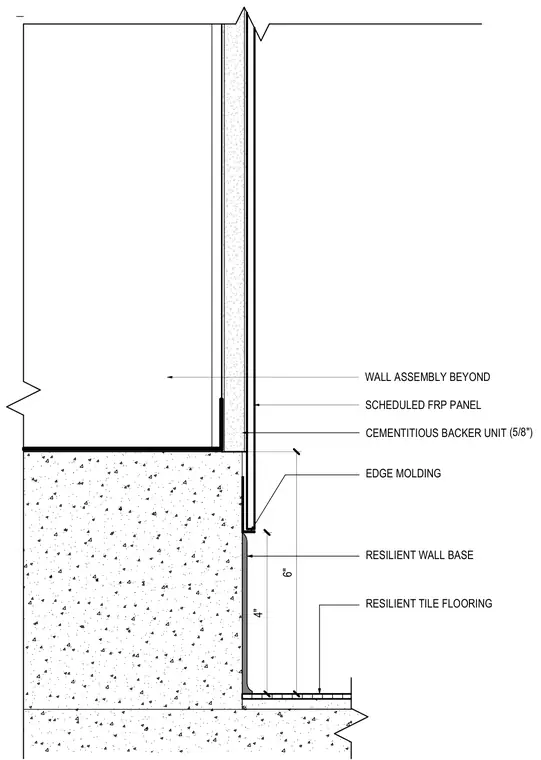

Scheduled fiber-reinforced plastic panels mount over a five-eighths-inch cementitious backer unit with an edge molding terminating above the base. A six-inch resilient wall base transitions to a four-inch resilient tile flooring at the lower junction. The wall assembly continues upward beyond the detailed finish layers.
6" RESILIENT WALL BASE EDGE MOLDING 4" RESILIENT TILE FLOORING WALL ASSEMBLY BEYOND SCHEDULED FRP PANEL CEMENTITIOUS BACKER UNIT (5/8")
