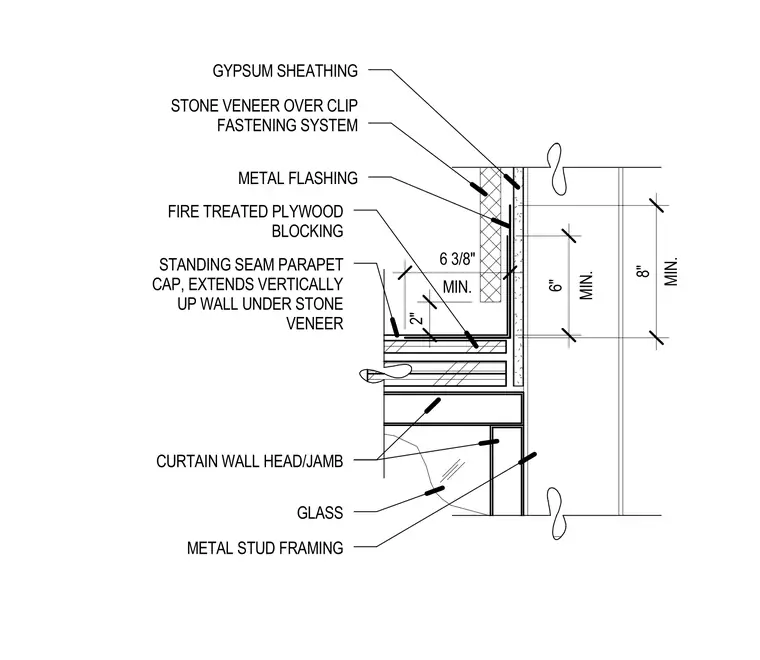

This wall section details a parapet intersection featuring a standing seam parapet cap that extends vertically up the wall under the stone veneer. The assembly incorporates fire treated plywood blocking with a minimum six-inch vertical dimension, metal flashing, and gypsum sheathing over metal stud framing. A stone veneer is supported by a clip fastening system. Below the parapet, the curtain wall head and jamb interface with the glass and framing assembly, maintaining specified minimum clearances of six and eight inches.
MIN. 6 3/8" MIN. 8" MIN. 6" 2" FIRE TREATED PLYWOOD BLOCKING STONE VENEER OVER CLIP FASTENING SYSTEM CURTAIN WALL HEAD/JAMB GLASS STANDING SEAM PARAPET CAP, EXTENDS VERTICALLY UP WALL UNDER STONE VENEER METAL FLASHING METAL STUD FRAMING GYPSUM SHEATHING
