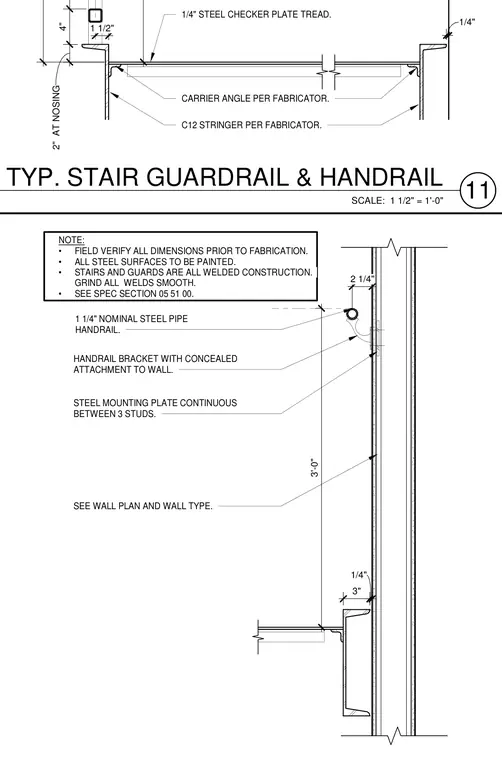

A stair guardrail and handrail assembly is supported by a 1 1/4-inch nominal steel pipe handrail attached to a handrail bracket with concealed wall mounting. The handrail bracket connects to a continuous steel mounting plate spanning three studs within the wall assembly, positioned 3 feet above the stair tread. The stair tread consists of a 1/4-inch steel checker plate supported by a carrier angle and a C12 channel stringer sized per the fabricator. All stairs and guards are of welded construction with smooth-ground welds, and all steel surfaces are specified to be painted.
2" AT NOSING 4" 1 1/2" 1/4" 1/4" STEEL CHECKER PLATE TREAD. CARRIER ANGLE PER FABRICATOR. C12 STRINGER PER FABRICATOR. 1 1/4" NOMINAL STEEL PIPE HANDRAIL. NOTE: • FIELD VERIFY ALL DIMENSIONS PRIOR TO FABRICATION. • ALL STEEL SURFACES TO BE PAINTED. • STAIRS AND GUARDS ARE ALL WELDED CONSTRUCTION. GRIND ALL WELDS SMOOTH. • SEE SPEC SECTION 05 51 00. 3'-0" 1/4" 3" 2 1/4" HANDRAIL BRACKET WITH CONCEALED ATTACHMENT TO WALL. STEEL MOUNTING PLATE CONTINUOUS BETWEEN 3 STUDS. SEE WALL PLAN AND WALL TYPE. SCALE: 1 1/2" = 1'-0" 11 TYP. STAIR GUARDRAIL & HANDRAIL
