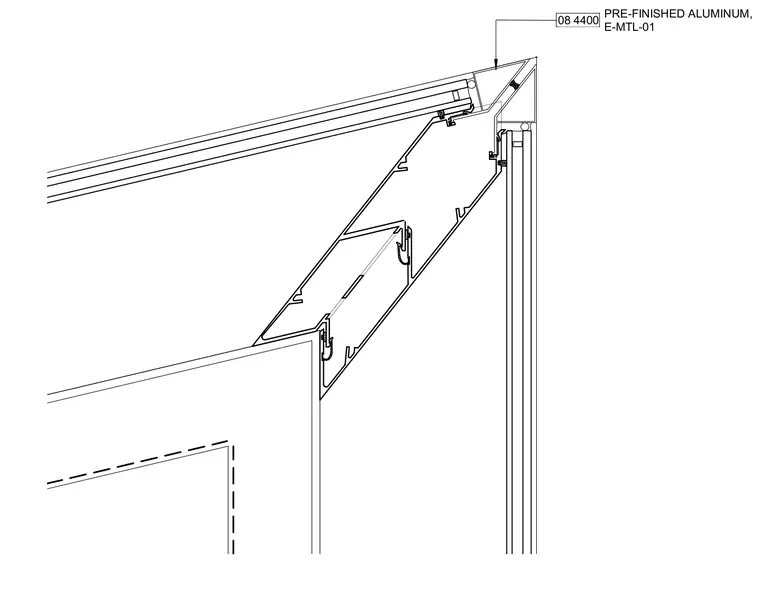

Pre-finished aluminum corner jamb assembly utilizing extruded metal framing profiles and internal reinforcement. The framing members connect at the exterior corner to maintain alignment and weather resistance. Fasteners and interlocking extrusions secure the profiles together.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
