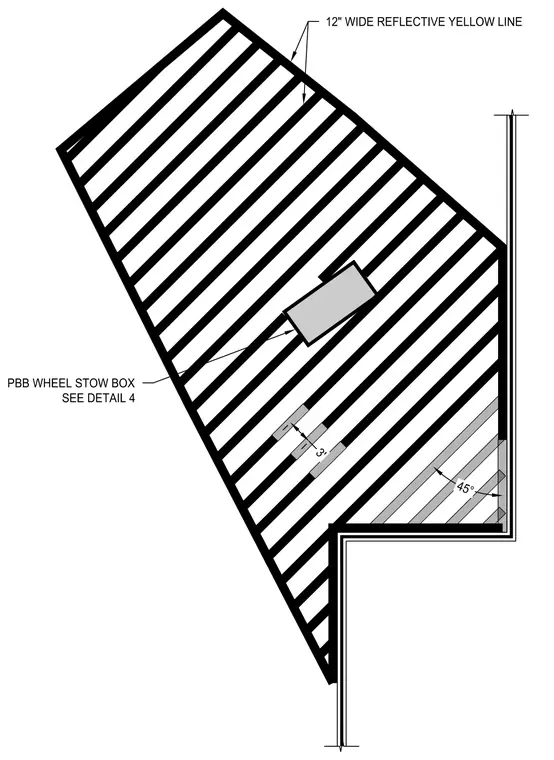

A passenger boarding bridge wheel stow box is marked on the pavement with a 45-degree pattern of 12-inch wide reflective yellow lines spaced at 3 feet. The designated stow box rectangle sits centered within the diagonal pavement markings.
