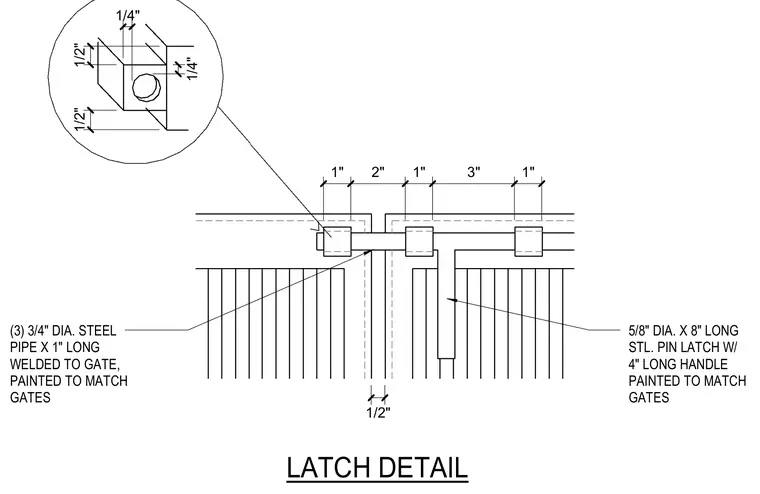

A five-eighths-inch diameter by eight-inch long steel pin latch with a four-inch long handle operates through three guide sleeves. Three three-quarter-inch diameter steel pipes, each one inch long, are welded to the gate and painted to match. All components receive a paint finish matching the gate.
(3) 3/4" DIA. STEEL PIPE X 1" LONG WELDED TO GATE, PAINTED TO MATCH GATES LATCH DETAIL 5/8" DIA. X 8" LONG STL. PIN LATCH W/ 4" LONG HANDLE PAINTED TO MATCH GATES 1/2" 1" 2" 1" 3" 1" 1/2" 1/2" 1/4" 1/4"
