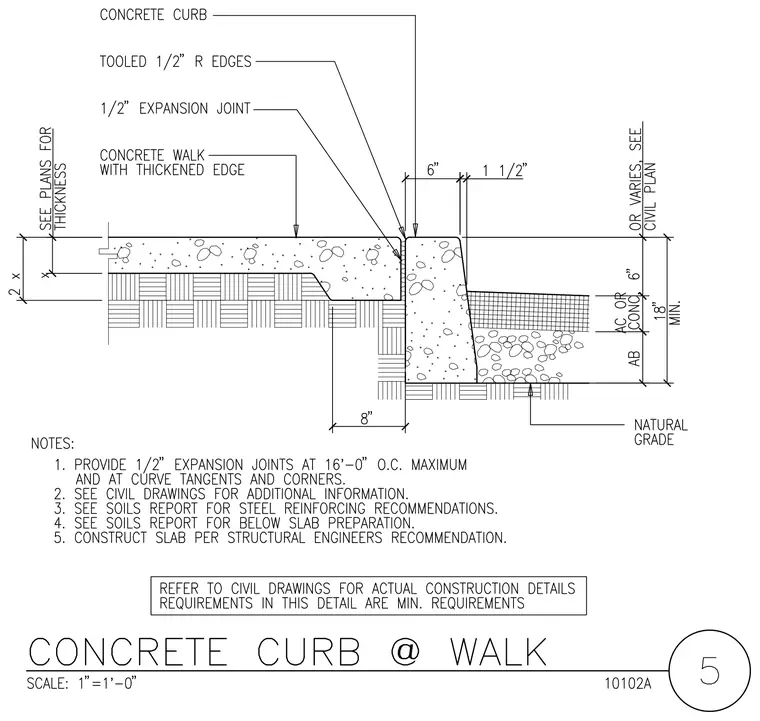

A cast-in-place concrete curb sits adjacent to a concrete walk with a thickened edge. A half-inch expansion joint separates the walk from the curb, which features tooled half-inch radius edges at the top corner. The walk rests on a prepared subgrade with a thickness sized per plans, featuring an eight-inch wide thickened edge bearing. The curb sits on aggregate base or concrete with an eighteen-inch minimum depth extending down to natural grade. General notes specify half-inch expansion joints at sixteen feet on center maximum and at curve tangents and corners.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
