Architectural · A-DNC4T

Window Head and Sill Flashing with Interior Light Pocket

Materials

Elements

Waterproofing / Flashing Drainage Millwork / Casework Reinforcing

About this detail

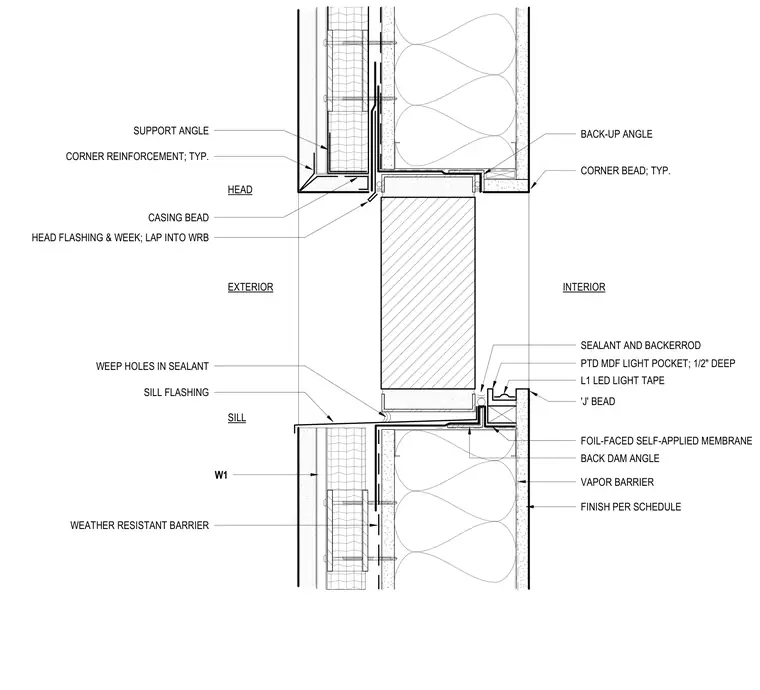

The window head features a support angle, casing bead, and head flashing with weepholes that laps into the weather-resistant barrier, protected by corner reinforcement and corner beads. The sill incorporates a sill flashing with a back dam angle, weep holes in sealant, a weather-resistant barrier, and a foil-faced self-applied membrane vapor barrier. The interior side includes a painted medium-density fiberboard light pocket with a half-inch depth, an L1 LED light tape, and a 'J' bead finished per schedule with sealant and backer rod.
