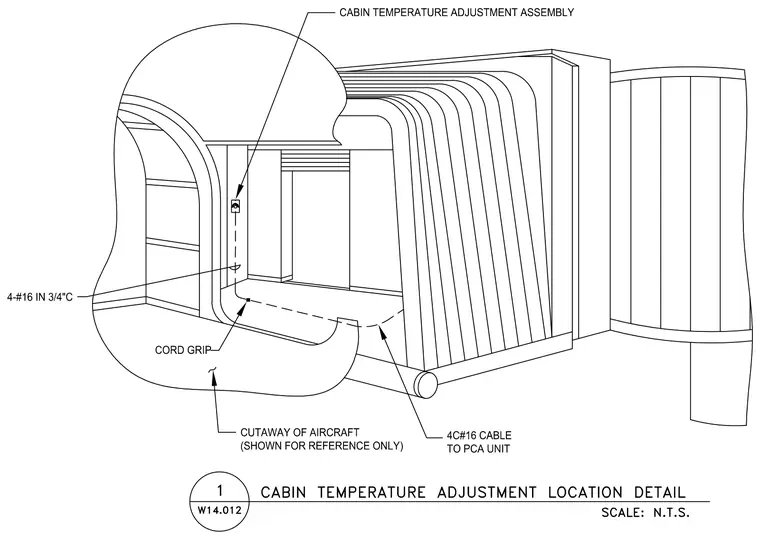

The cabin temperature adjustment assembly is mounted to the interior wall of an aircraft passenger boarding bridge. Four number 16 conductors are routed in a three-quarter inch conduit secured with a cord grip. A four-conductor number 16 cable extends down to the preconditioned air unit. The surrounding aircraft cutaway is shown for reference only.
4-#16 IN 3/4"C CORD GRIP CABIN TEMPERATURE ADJUSTMENT ASSEMBLY 4C#16 CABLE TO PCA UNIT CUTAWAY OF AIRCRAFT (SHOWN FOR REFERENCE ONLY)
