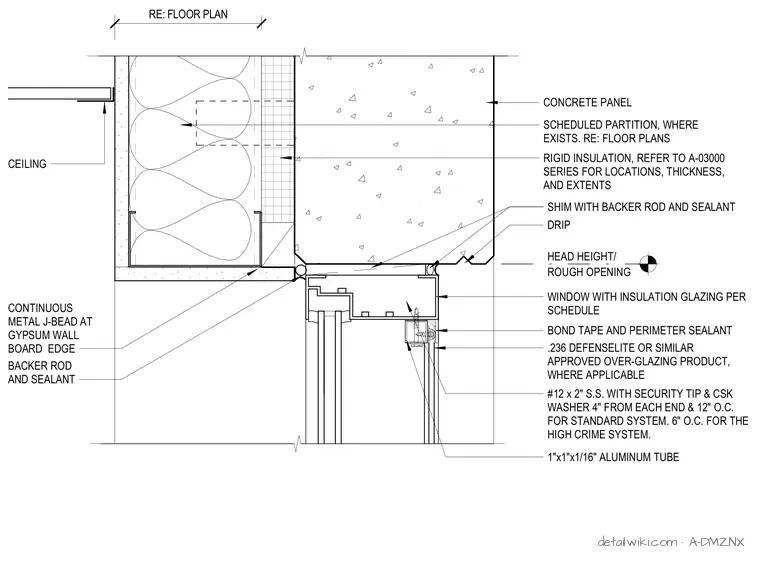

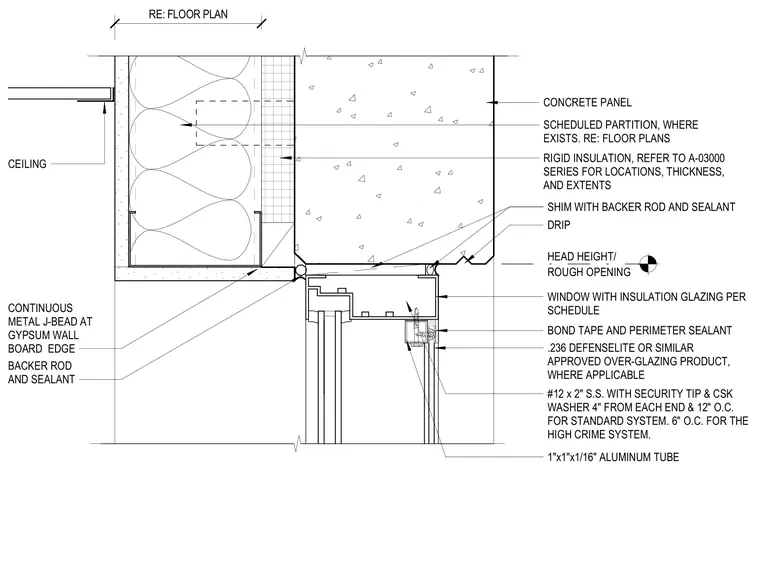

The storefront window head is anchored to a concrete panel wall with a shim space sealed by backer rod and perimeter sealant. The window frame includes an insulated glazing unit and a .236-inch thick Defenselite or similar approved over-glazing product. This security layer is secured to the frame using number 12 by 2-inch stainless steel screws with security tips and countersunk washers, spaced at 4 inches from each end and 12 inches on center for standard systems, or 6 inches on center for high-crime systems, supported by a 1-inch by 1-inch by 1/16-inch aluminum tube. The interior gypsum wall board terminates at the window head with a continuous metal J-bead, with the gap between the ceiling and wall sealed by backer rod and sealant. DefenseLite application is required only at openings located below 30 feet from grade.
Text on the drawing
NOTE: DEFENSELITE APPLICATION ONLY REQUIRED AT OPENINGS BELOW 30'-0" FROM GRADE. CEILING BACKER ROD AND SEALANT CONTINUOUS METAL J-BEAD AT GYPSUM WALL BOARD EDGE RE: FLOOR PLAN
