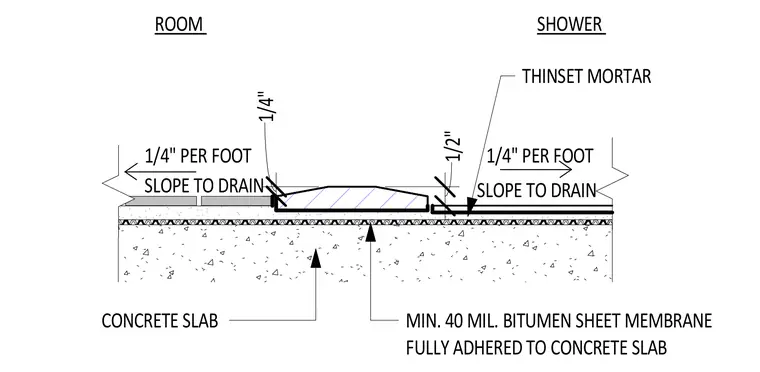

A structural concrete slab receives a minimum 40 mil bitumen sheet membrane fully adhered across the floor assembly. The adjacent room floor slopes at one-quarter inch per foot toward the drain. The shower compartment floor features a corresponding slope of one-quarter inch per foot toward the drain, finished with thinset mortar.
1/4" 1/2" MIN. 40 MIL. BITUMEN SHEET MEMBRANE FULLY ADHERED TO CONCRETE SLAB 1/4" PER FOOT 1/4" PER FOOT THINSET MORTAR SHOWER ROOM CONCRETE SLAB SLOPE TO DRAIN SLOPE TO DRAIN
