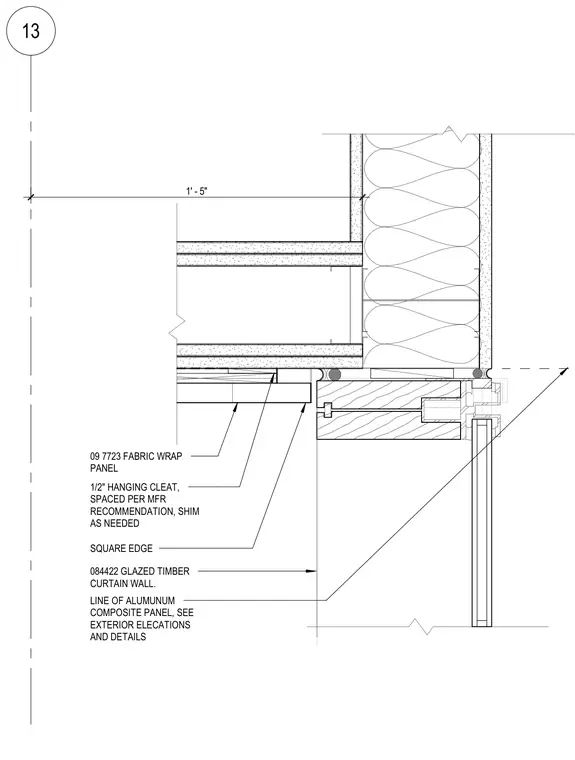

An interior fabric-wrapped acoustic panel with a square edge is secured using a half-inch hanging cleat with shims as needed, spaced per manufacturer recommendations. The panel abuts a glazed timber curtain wall system, with an aligned line of aluminum composite panel shown externally. The assembly maintains a one-foot five-inch dimension from the grid line to the interior finish.
13 084422 GLAZED TIMBER CURTAIN WALL. 09 7723 FABRIC WRAP PANEL SQUARE EDGE 1/2" HANGING CLEAT, SPACED PER MFR RECOMMENDATION, SHIM AS NEEDED 1' - 5" LINE OF ALUMUNUM COMPOSITE PANEL, SEE EXTERIOR ELECATIONS AND DETAILS
