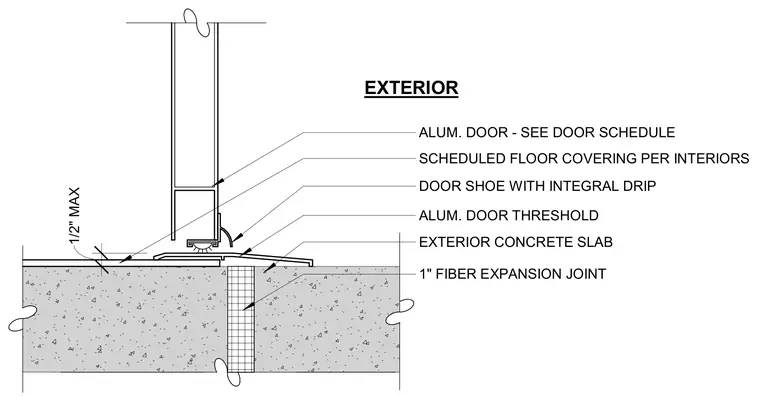

An exterior aluminum door shoe with an integral drip sits above an aluminum door threshold set on an exterior concrete slab. Scheduled floor covering transitions to the threshold with a maximum one-half inch clearance. A one-inch fiber expansion joint separates the concrete slab sections directly beneath the threshold.
EXTERIOR DOOR SHOE WITH INTEGRAL DRIP ALUM. DOOR - SEE DOOR SCHEDULE 1" FIBER EXPANSION JOINT ALUM. DOOR THRESHOLD SCHEDULED FLOOR COVERING PER INTERIORS EXTERIOR CONCRETE SLAB 1/2" MAX
