Architectural · A-DMKNY

Interior Partition Intersection at Exterior Glazing Mullions

Materials

Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

About this detail

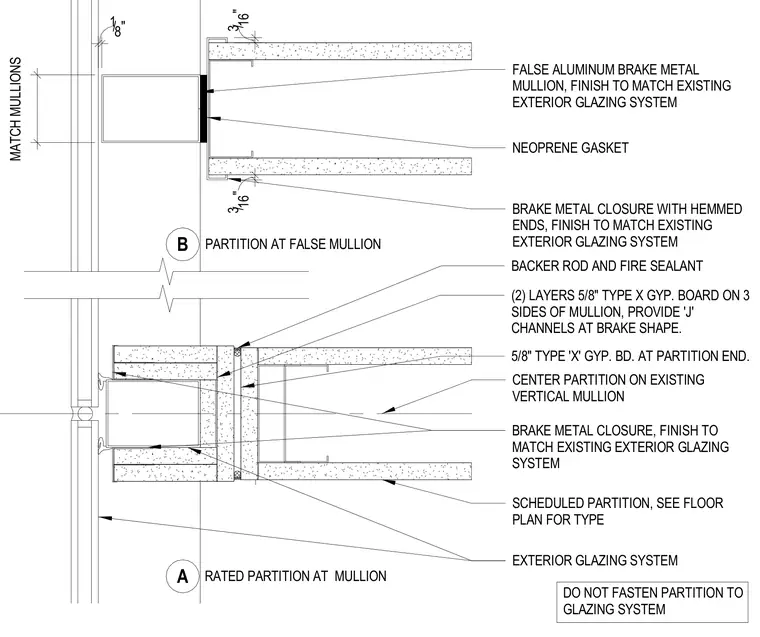

Interior partition walls intersect the exterior glazing system at both false and rated vertical mullions without direct mechanical attachment to the glazing framing. A false aluminum brake metal mullion with a neoprene gasket interfaces with one partition end, finished with brake metal closure pieces featuring hemmed ends. The rated partition condition wraps the structural vertical mullion with two layers of five-eighths-inch Type X gypsum board on three sides using 'J' channels at the brake shape. A backer rod and fire sealant seal the joint at the partition end, which finishes with a single layer of five-eighths-inch Type X gypsum board. The partition is centered on the existing vertical mullion as indicated in the floor plan.
