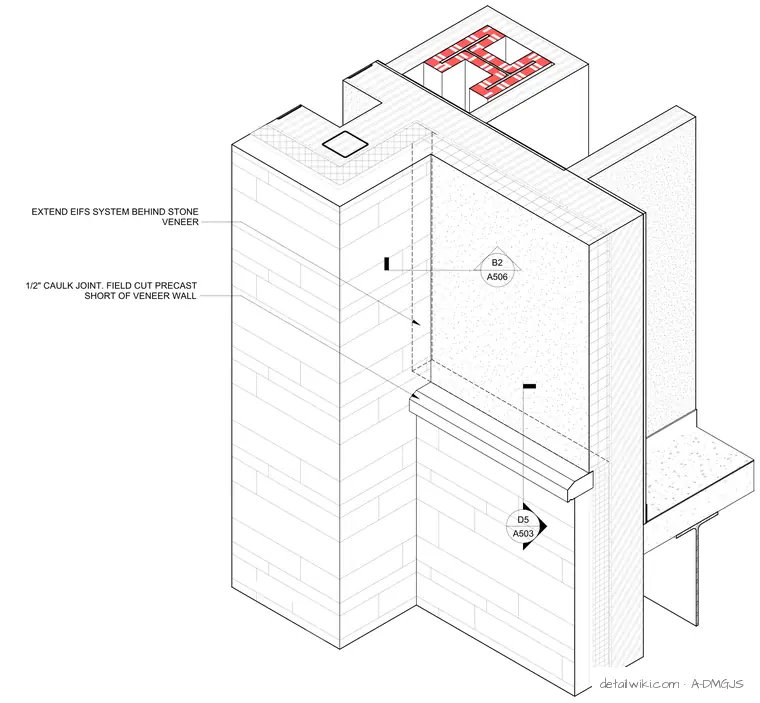

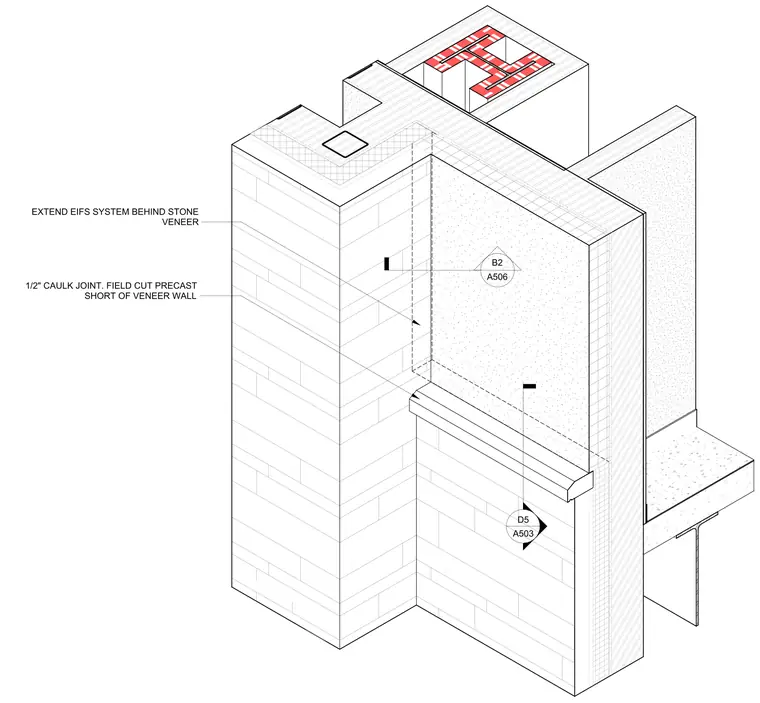

The EIFS system extends behind the stone veneer to maintain building envelope continuity. A one-half inch caulk joint occurs at the vertical interface, where the precast element is field-cut short of the stone veneer wall. Additional details provide further coordination of the facade components.
