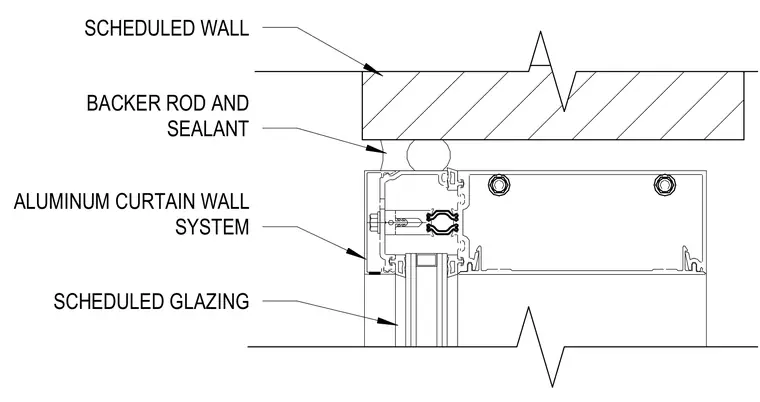

An aluminum curtain wall system intersects with a scheduled wall at the head condition. A continuous backer rod and sealant bead seal the joint between the top of the aluminum framing and the underside of the wall. Scheduled glazing is installed within the curtain wall framing below.
SCHEDULED WALL BACKER ROD AND SEALANT ALUMINUM CURTAIN WALL SYSTEM SCHEDULED GLAZING
