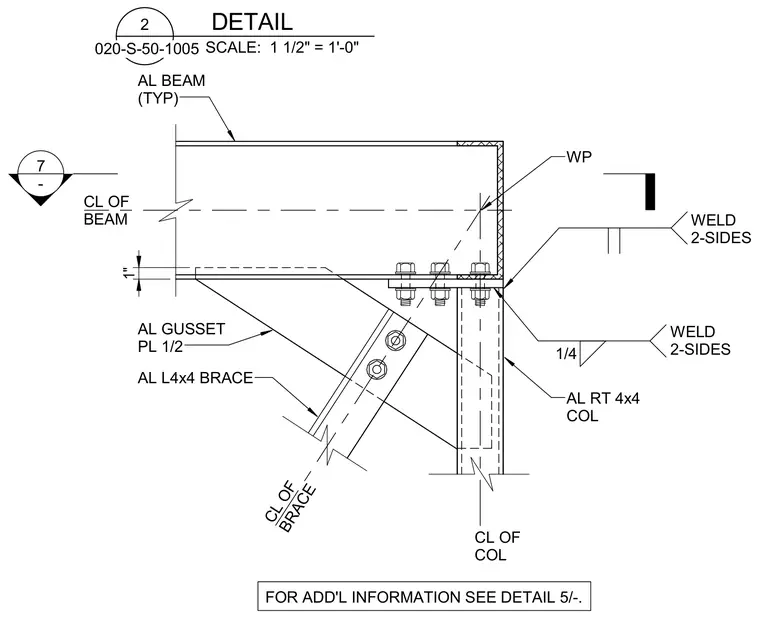

An aluminum L4x4 brace connects to a half-inch aluminum gusset plate welded to the underside of an aluminum beam. The gusset plate and brace align with the working point at the column face. The aluminum rectangular tube column connects to the beam flange using bolts and quarter-inch welds on two sides. Additional information is referenced on detail 5.
1" CL OF BEAM CL OF BRACE CL OF COL AL BEAM (TYP) AL GUSSET PL 1/2 AL L4x4 BRACE AL RT 4x4 COL WP FOR ADD'L INFORMATION SEE DETAIL 5/-. 1/4 WELD 2-SIDES WELD 2-SIDES 7 - SCALE: 1 1/2" = 1'-0" 2 DETAIL 020-S-50-1005
