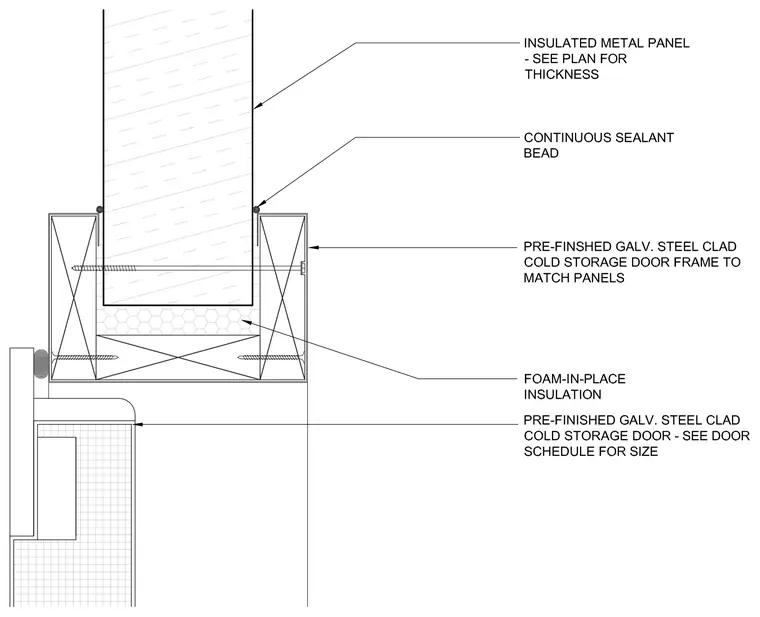

An insulated metal panel wall connects to a pre-finished galvanized steel clad cold storage door frame to match the panels, with panel thickness sized per plan. A continuous sealant bead runs along the joint between the panel and the frame. Foam-in-place insulation fills the internal cavity beneath the panel base. A pre-finished galvanized steel clad cold storage door, sized per the door schedule, operates adjacent to the frame.
