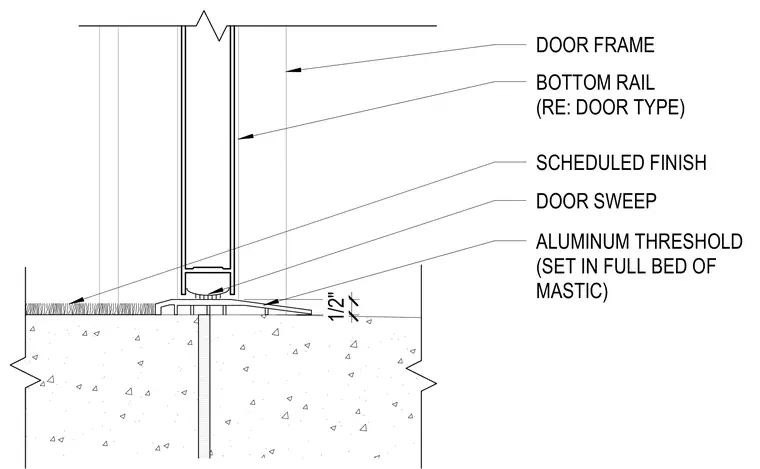

An aluminum threshold sits in a full bed of mastic on the concrete slab, providing a half-inch transition at the base of the door opening. A door sweep attaches to the bottom rail of the door leaf to seal against the threshold. The door frame is anchored adjacent to the assembly, with finishes scheduled per the architectural specifications.
DOOR SWEEP BOTTOM RAIL (RE: DOOR TYPE) ALUMINUM THRESHOLD (SET IN FULL BED OF MASTIC) DOOR FRAME 1/2" SCHEDULED FINISH
