Obstacle demarcation lines are installed with markings positioned a minimum of six feet six inches above the finished floor. Optional floor-mounted demarcation lines are placed as close as practical with clearances ranging from one inch minimum to two inches maximum.

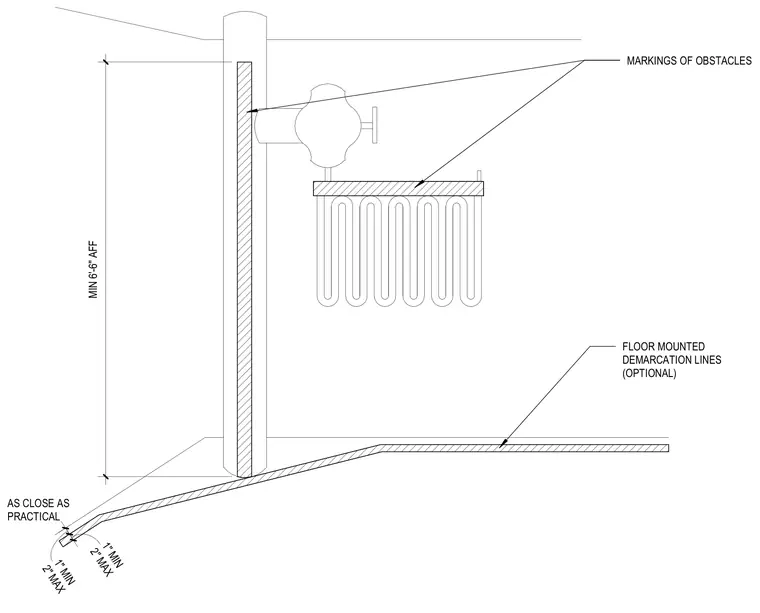

MIN 6'-6" AFF MARKINGS OF OBSTACLES FLOOR MOUNTED DEMARCATION LINES (OPTIONAL) 1" MIN 2" MAX AS CLOSE AS PRACTICAL 1" MIN 2" MAX
