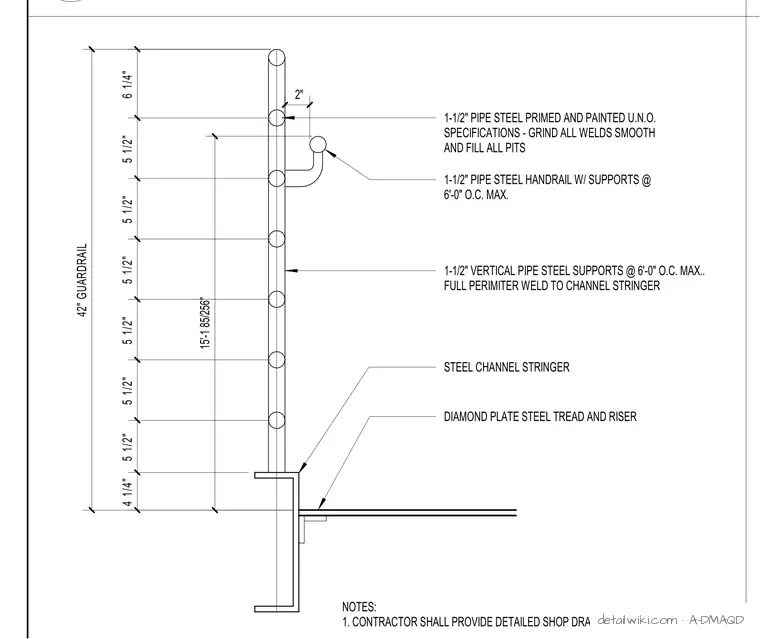

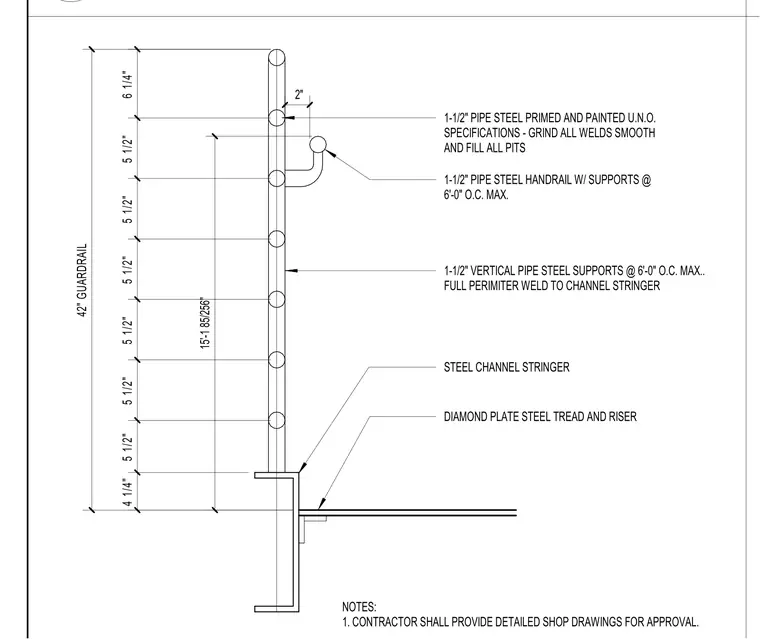

This assembly consists of a one-and-a-half-inch diameter steel pipe guardrail and handrail system supported by vertical pipe posts spaced at a maximum of six feet on center. The vertical supports are attached to the steel channel stringer with a full perimeter weld. The stair assembly features diamond plate steel treads and risers. All steel components are to be primed and painted unless noted otherwise, with all welds ground smooth and pits filled to meet finish specifications.
Text on the drawing
2" 15'-1 85/256" 5 1/2" 5 1/2" 5 1/2" 5 1/2" 5 1/2" 6 1/4" 42" GUARDRAIL 1-1/2" PIPE STEEL PRIMED AND PAINTED U.N.O. SPECIFICATIONS - GRIND ALL WELDS SMOOTH AND FILL ALL PITS 1-1/2" PIPE STEEL HANDRAIL W/ SUPPORTS @ 6'-0" O.C. MAX. 1-1/2" VERTICAL PIPE STEEL SUPPORTS @ 6'-0" O.C. MAX.. FULL PERIMITER WELD TO CHANNEL STRINGER STEEL CHANNEL STRINGER DIAMOND PLATE STEEL TREAD AND RISER
