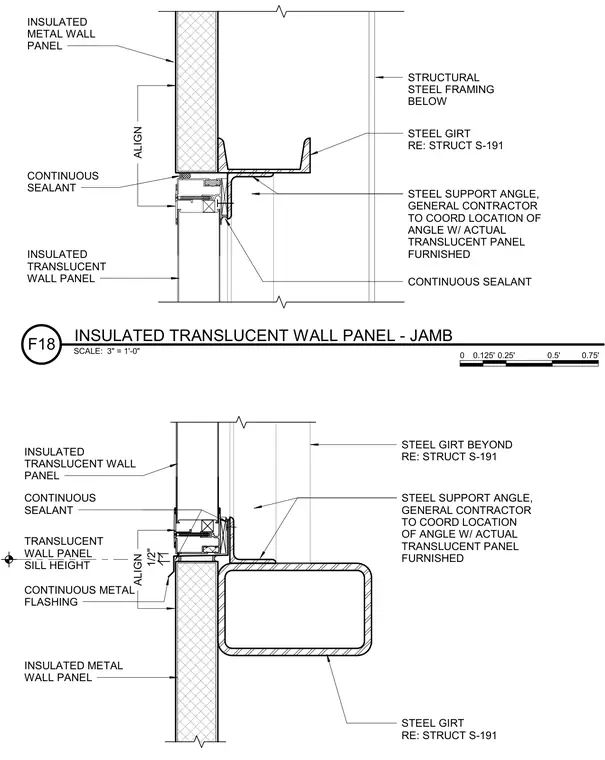

An insulated translucent wall panel transitions to an insulated metal wall panel supported by steel girts and steel support angles. Continuous sealant is applied at the panel joints, and continuous metal flashing is provided at the sill. The general contractor is instructed to coordinate the location of the steel support angle with the actual translucent panel furnished.
INSULATED METAL WALL PANEL INSULATED TRANSLUCENT WALL PANEL STEEL SUPPORT ANGLE, GENERAL CONTRACTOR TO COORD LOCATION OF ANGLE W/ ACTUAL TRANSLUCENT PANEL FURNISHED CONTINUOUS SEALANT STEEL GIRT RE: STRUCT S-191 STRUCTURAL STEEL FRAMING BELOW CONTINUOUS SEALANT ALIGN INSULATED METAL WALL PANEL INSULATED TRANSLUCENT WALL PANEL STEEL SUPPORT ANGLE, GENERAL CONTRACTOR TO COORD LOCATION OF ANGLE W/ ACTUAL TRANSLUCENT PANEL FURNISHED STEEL GIRT RE: STRUCT S-191 CONTINUOUS METAL FLASHING CONTINUOUS SEALANT TRANSLUCENT WALL PANEL SILL HEIGHT ALIGN STEEL GIRT BEYOND RE: STRUCT S-191 1/2" SCALE: 3" = 1'-0" F18 INSULATED TRANSLUCENT WALL PANEL - JAMB 0 0.125' 0.25' 0.5' 0.75'
