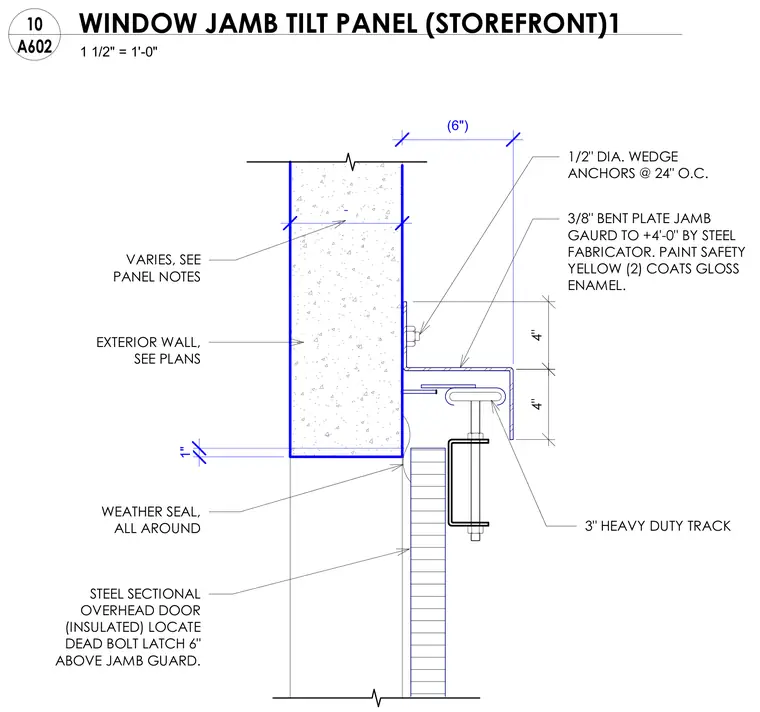

A three-eighths-inch bent plate jamb guard is anchored to the exterior tilt-up concrete wall using one-half-inch diameter wedge anchors spaced at twenty-four inches on center. The jamb guard extends to plus four feet zero inches and is finished with two coats of safety yellow gloss enamel paint. A three-inch heavy-duty steel track supports an insulated steel sectional overhead door positioned adjacent to the concrete wall. A continuous weather seal is applied all around the perimeter.
VARIES, SEE PANEL NOTES 4" 4" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL OVERHEAD DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND 1" EXTERIOR WALL, SEE PLANS (6") - 1 1/2" = 1'-0" A602 10 WINDOW JAMB TILT PANEL (STOREFRONT)1
