This interior wall assembly consists of 6-inch cold-formed metal stud framing with stud spacing per the structural drawings. Sound attenuation batt insulation fills the cavity between studs. A layer of 1/2-inch gypsum sheathing is applied to the exterior side, while the interior finish is specified per the finish schedule.

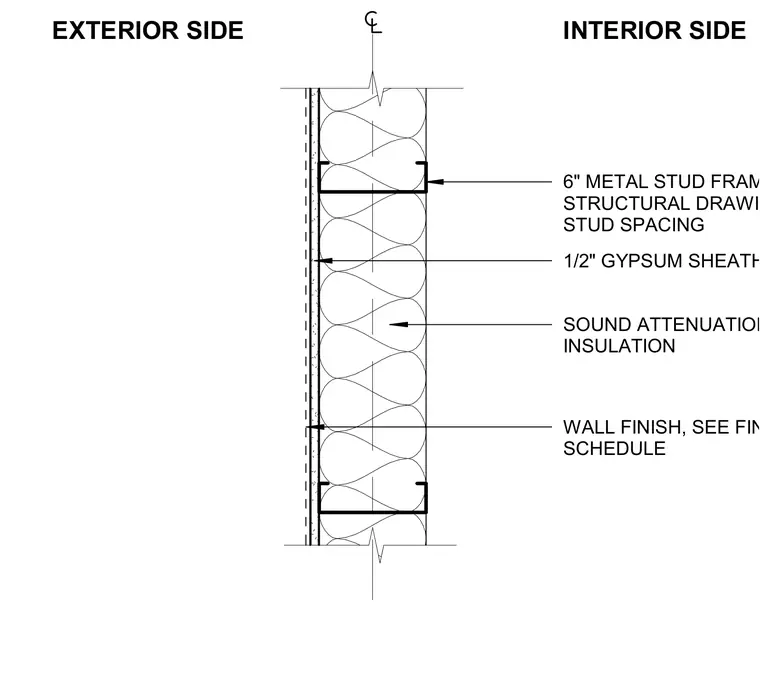

INTERIOR SIDE 6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING EXTERIOR SIDE 1/2" GYPSUM SHEATHING WALL FINISH, SEE FINISH SCHEDULE SOUND ATTENUATION BATT INSULATION
