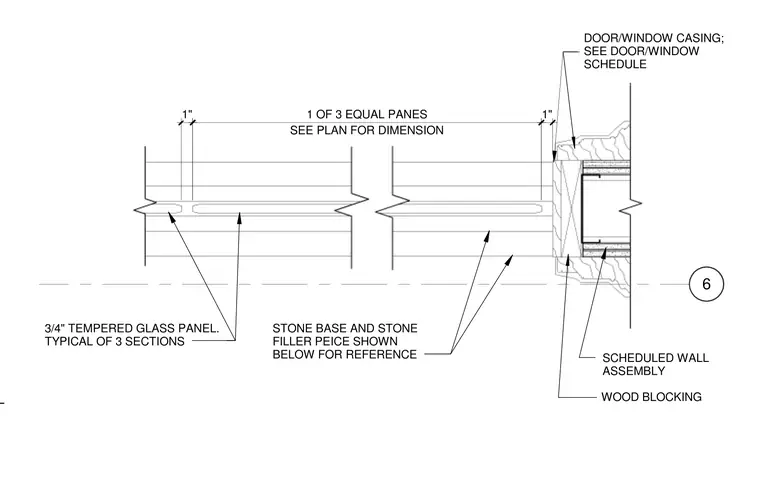

This plan detail shows a glass wall assembly featuring three equal panes of three-quarter-inch tempered glass panels tied into a scheduled wall assembly with wood blocking and door and window casing sized per the door and window schedule. A stone base and stone filler piece are shown below for reference. Dimensions are provided for spacing with one inch clearances and overall widths determined per plan.
6 1" 1" SEE PLAN FOR DIMENSION 1 OF 3 EQUAL PANES 3/4" TEMPERED GLASS PANEL. TYPICAL OF 3 SECTIONS SCHEDULED WALL ASSEMBLY DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE WOOD BLOCKING STONE BASE AND STONE FILLER PEICE SHOWN BELOW FOR REFERENCE
