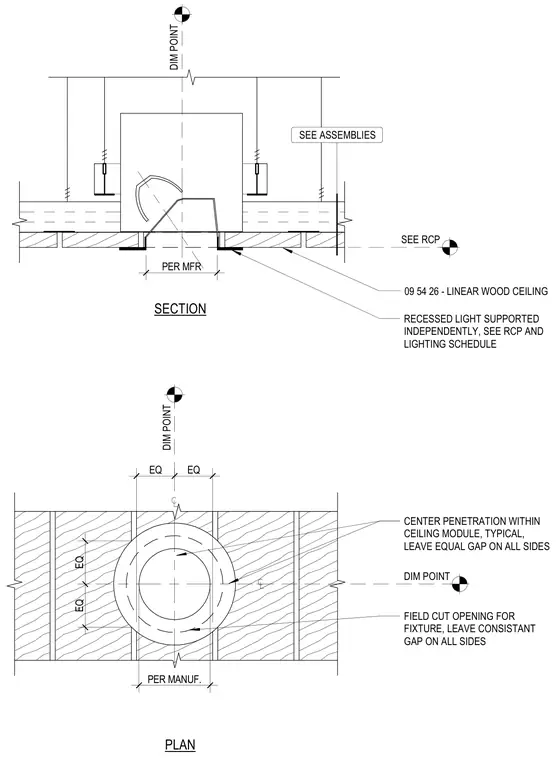

A linear wood ceiling system receives a field-cut opening for a recessed light fixture. The light fixture is supported independently per the reflected ceiling plan and lighting schedule. The fixture penetration is centered within the ceiling module with equal consistent gaps on all sides per the manufacturer specifications.
RECESSED LIGHT SUPPORTED INDEPENDENTLY, SEE RCP AND LIGHTING SCHEDULE PER MFR EQ EQ EQ EQ FIELD CUT OPENING FOR FIXTURE, LEAVE CONSISTANT GAP ON ALL SIDES CENTER PENETRATION WITHIN CEILING MODULE, TYPICAL, LEAVE EQUAL GAP ON ALL SIDES PLAN PER MANUF. SECTION DIM POINT DIM POINT DIM POINT SEE ASSEMBLIES 09 54 26 - LINEAR WOOD CEILING SEE RCP
