Architectural · A-DKKGF

Typ - Garage Exp Joint At Opening (Header)

Materials

Concrete Membrane / Roofing Steel Timber / Wood

Elements

Beams Expansion / Control Joints Insulation Roof / Floor Openings Walls Waterproofing / Flashing

Connections

Expansion / Slip Connection Welded Connection

About this detail

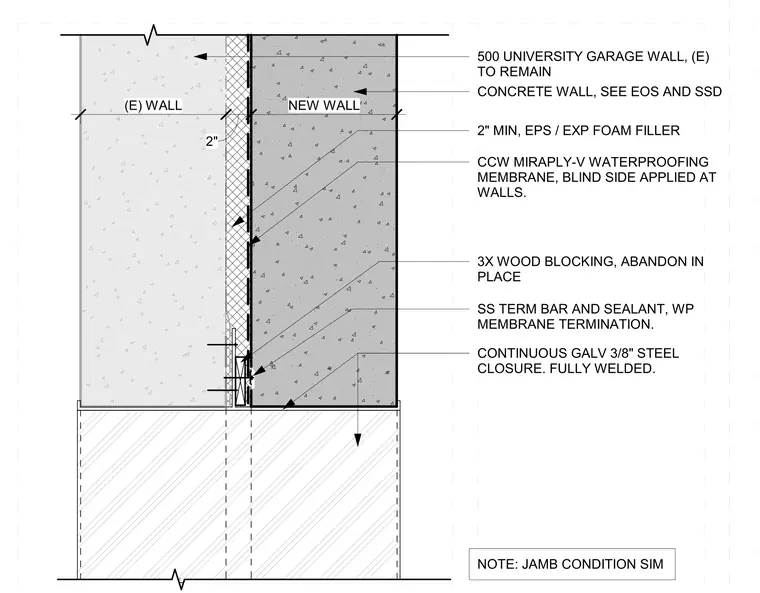

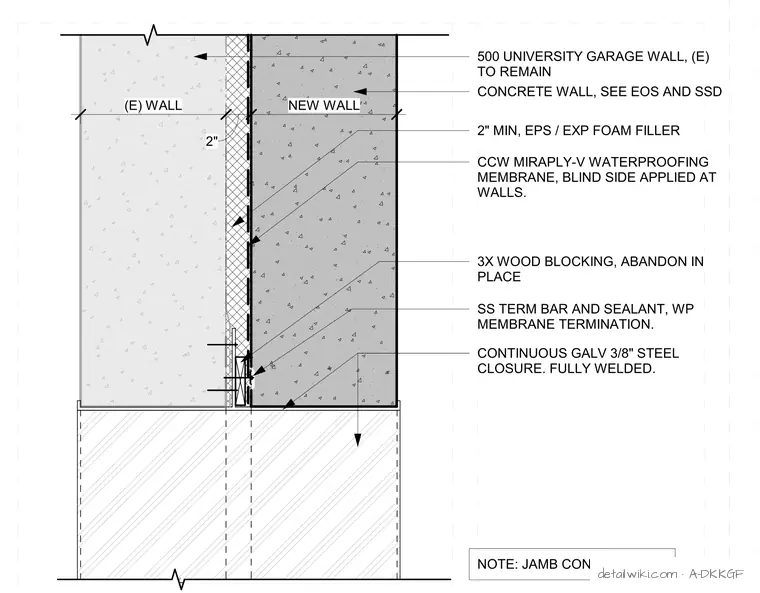

An expansion joint bridges an existing concrete wall and a new concrete wall, incorporating a two-inch minimum expanded polystyrene foam filler in the joint gap. A blind-side applied waterproofing membrane runs along the face of the new wall, terminating at a stainless steel termination bar sealed with sealant. A continuous galvanized three-eighths-inch steel closure spans the opening and is fully welded in place, backed by abandoned-in-place three-by wood blocking.
