Tactile signage characters are raised one-thirty-second inch minimum and consist of sans-serif uppercase letters accompanied by contracted braille per California Building Code section 1117B.5.5. Characters, symbols, and their backgrounds feature a non-glare finish and contrast with their background per California Building Code section 1117B.5.2.

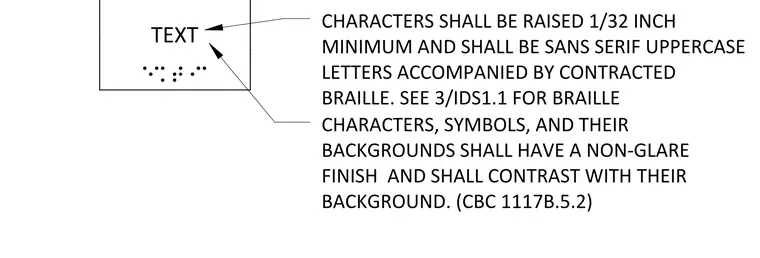

TEXT CHARACTERS SHALL BE RAISED 1/32 INCH MINIMUM AND SHALL BE SANS SERIF UPPERCASE LETTERS ACCOMPANIED BY CONTRACTED BRAILLE. SEE 3/IDS1.1 FOR BRAILLE INFORMATION. (CBC 1117B.5.5) CHARACTERS, SYMBOLS, AND THEIR BACKGROUNDS SHALL HAVE A NON‐GLARE FINISH AND SHALL CONTRAST WITH THEIR BACKGROUND. (CBC 1117B.5.2)
