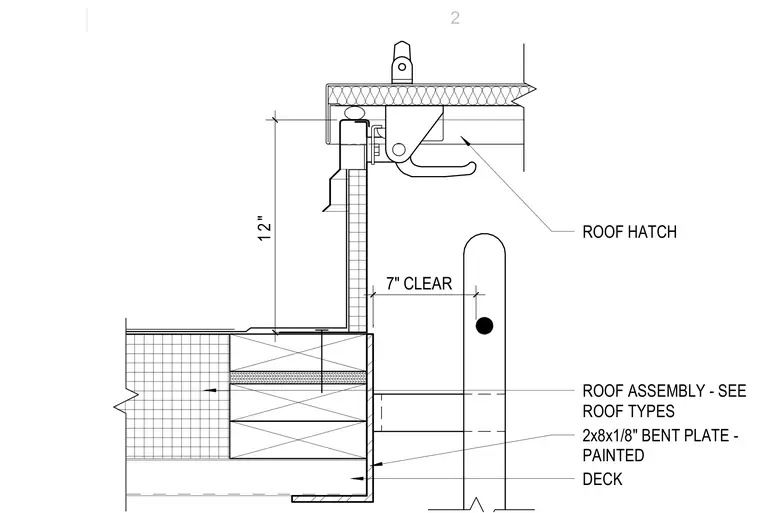

The roof hatch unit bears on a roof assembly sized per roof types. A painted two-by-eight by one-eighth-inch bent plate wraps the deck edge. The assembly maintains a twelve-inch vertical dimension and a seven-inch clear dimension to the adjacent vertical element.
ROOF HATCH DECK ROOF ASSEMBLY - SEE ROOF TYPES 1 2 " 2x8x1/8" BENT PLATE - PAINTED 7" CLEAR 2
