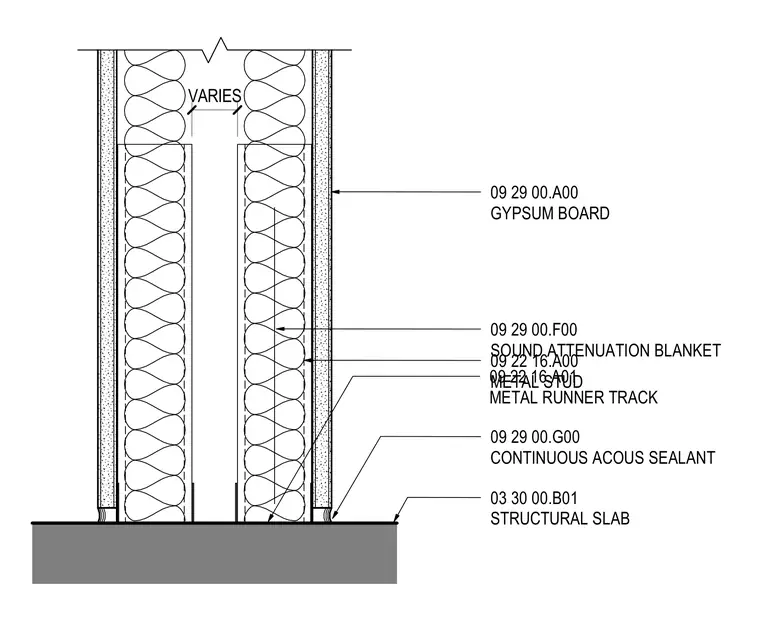

The cold-formed steel framing rests on a structural concrete slab via a metal runner track. Metal studs receive sound attenuation blankets within the partition cavity. Gypsum board layers finish both faces of the partition, sealed at the base with continuous acoustic sealant against the slab.
09 22 16.A01 METAL RUNNER TRACK 09 22 16.A00 METAL STUD 09 29 00.F00 SOUND ATTENUATION BLANKET 09 29 00.A00 GYPSUM BOARD 09 29 00.G00 CONTINUOUS ACOUS SEALANT 03 30 00.B01 STRUCTURAL SLAB VARIES
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
