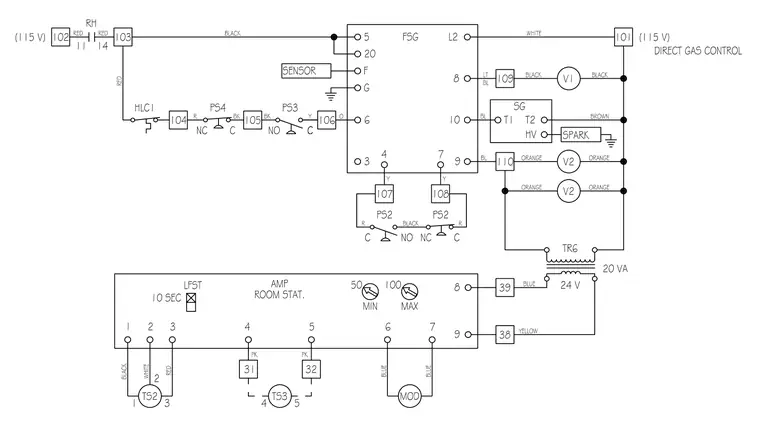

This electrical schematic details the control wiring for a direct gas control system operating on one hundred fifteen volts. Power routes through a relay and high limit control into a series of pressure switches and flame safety generator components. The room thermostat connects via multiple terminals to control modulating components and gas valves. Various wire colors including black, red, blue, orange, brown, and yellow designate specific control circuits.
