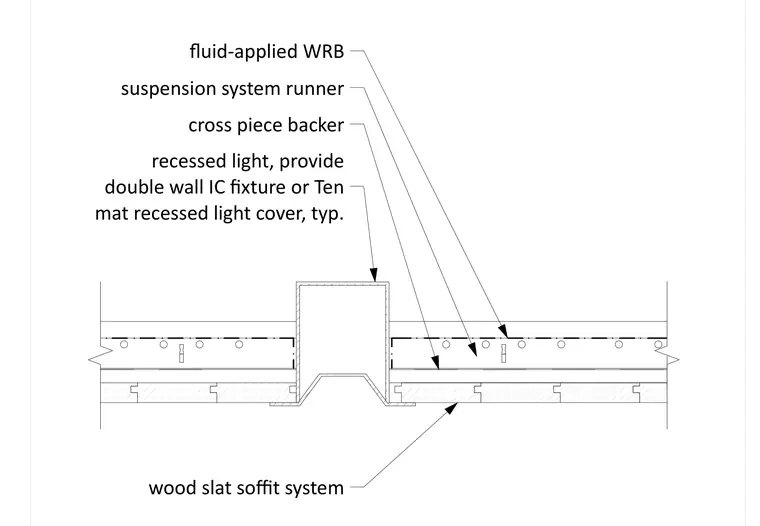

A recessed light fixture integrates into a wood slat soffit system suspended by runners and cross piece backers. The assembly incorporates a fluid-applied weather-resistive barrier behind the suspension grid. The lighting fixture utilizes a double-wall insulation-contact fixture or a Tenmat recessed light cover typically.
recessed light, provide double wall IC fixture or Ten mat recessed light cover, typ. cross piece backer fluid-applied WRB suspension system runner wood slat soffit system
