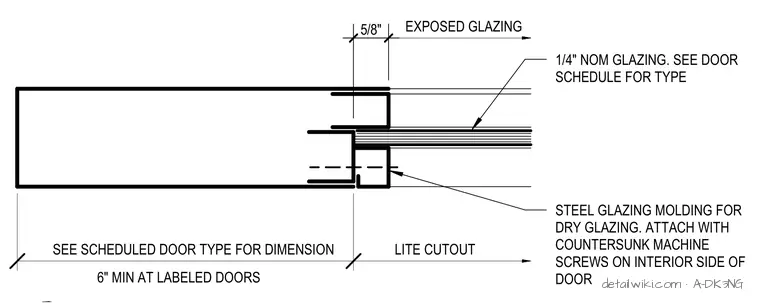

Glazing assembly for a hollow metal door, featuring a one-quarter inch nominal glass lite secured by steel glazing molding. The molding attaches via countersunk machine screws on the interior side of the door. A five-eighths inch dimension is maintained for the exposed glazing area. The lite cutout dimension is determined by the scheduled door type, with a six-inch minimum required at labeled doors.
Text on the drawing
HOLLOW METAL DOOR A 5/8" 1/4" NOM GLAZING. SEE DOOR SCHEDULE FOR TYPE STEEL GLAZING MOLDING FOR DRY GLAZING. ATTACH WITH COUNTERSUNK MACHINE SCREWS ON INTERIOR SIDE OF DOOR EXPOSED GLAZING LITE CUTOUT SEE SCHEDULED DOOR TYPE FOR DIMENSION 6" MIN AT LABELED DOORS EXPOSED GLAZING
