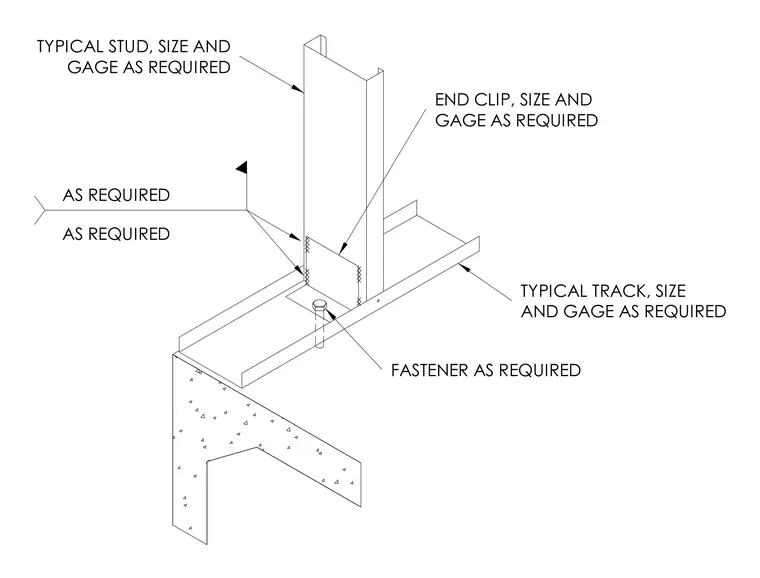

A typical cold-formed metal stud connects to a bottom track, with size and gauge specified as required. An end clip of matching size and gauge is attached to the stud and track. A mechanical fastener secures the track to the concrete substrate below.
AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED FASTENER AS REQUIRED
