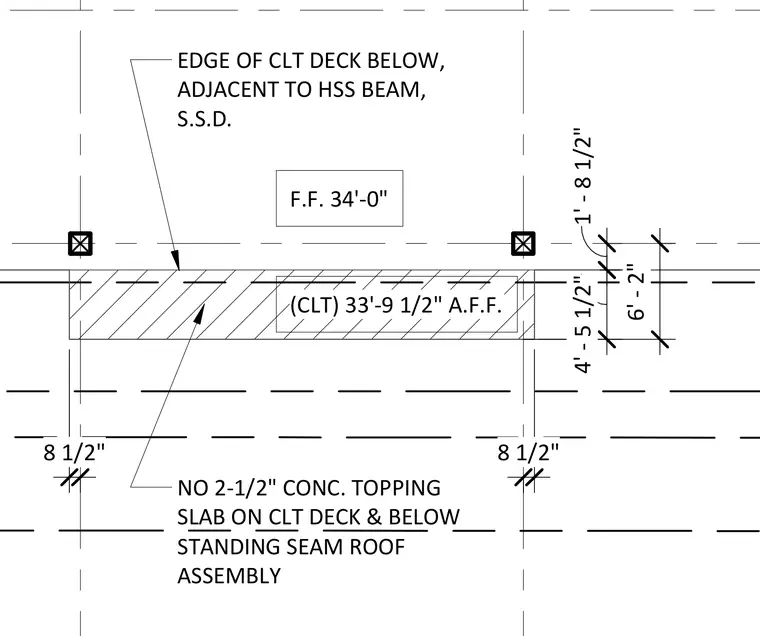

The assembly features a cross laminated timber deck located adjacent to a hollow structural section steel beam with a finished floor elevation of 34 feet zero inches. The cross laminated timber deck sits at 33 feet 9 and one-half inches above finished floor and omits any 2-half inch concrete topping slab. A standing seam roof assembly is detailed below the deck edge.
8 1/2" 8 1/2" 6' - 2" NO 2-1/2" CONC. TOPPING SLAB ON CLT DECK & BELOW STANDING SEAM ROOF ASSEMBLY EDGE OF CLT DECK BELOW, ADJACENT TO HSS BEAM, S.S.D. 4' - 5 1/2" F.F. 34'-0" (CLT) 33'-9 1/2" A.F.F. 1' - 8 1/2"
